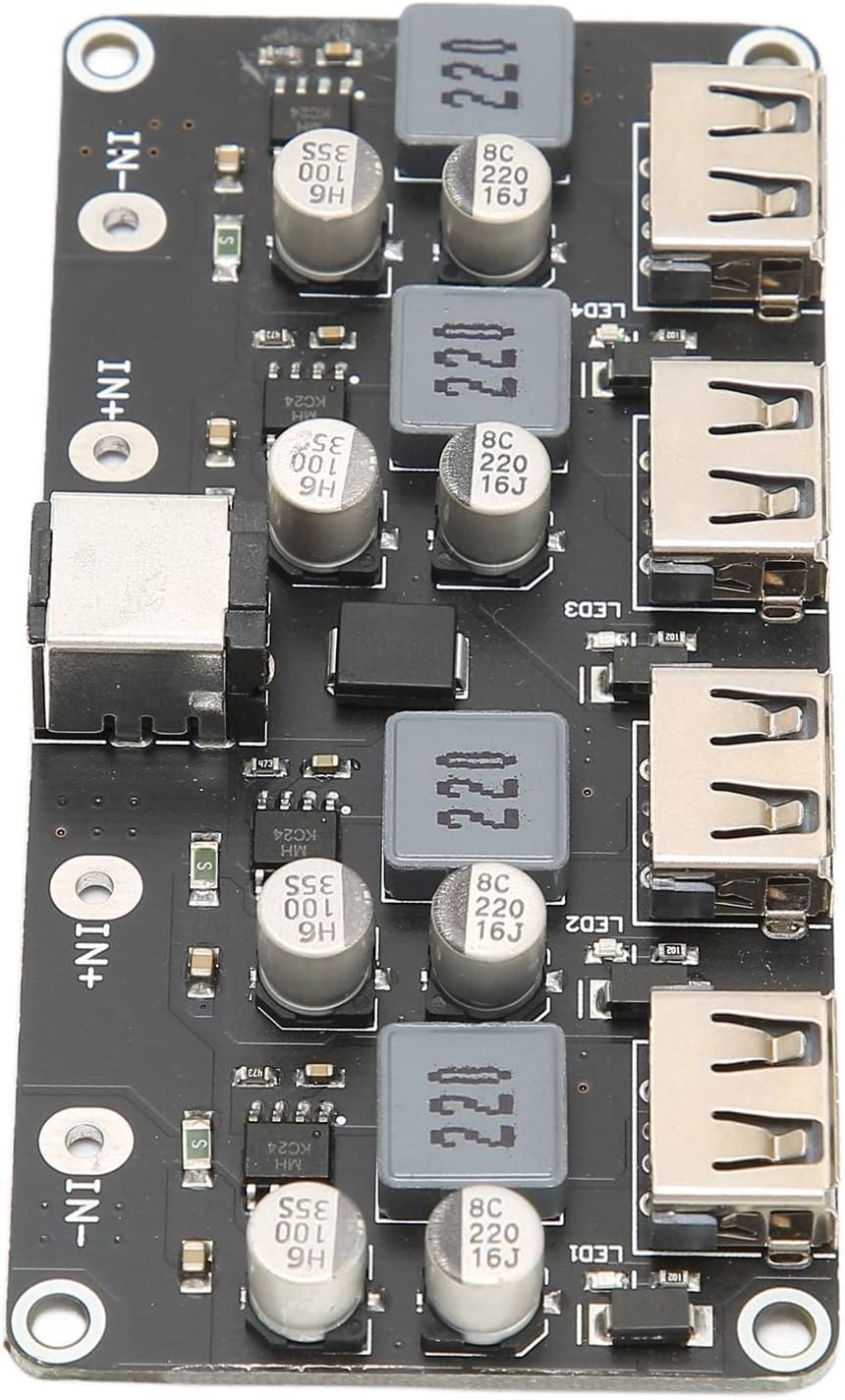

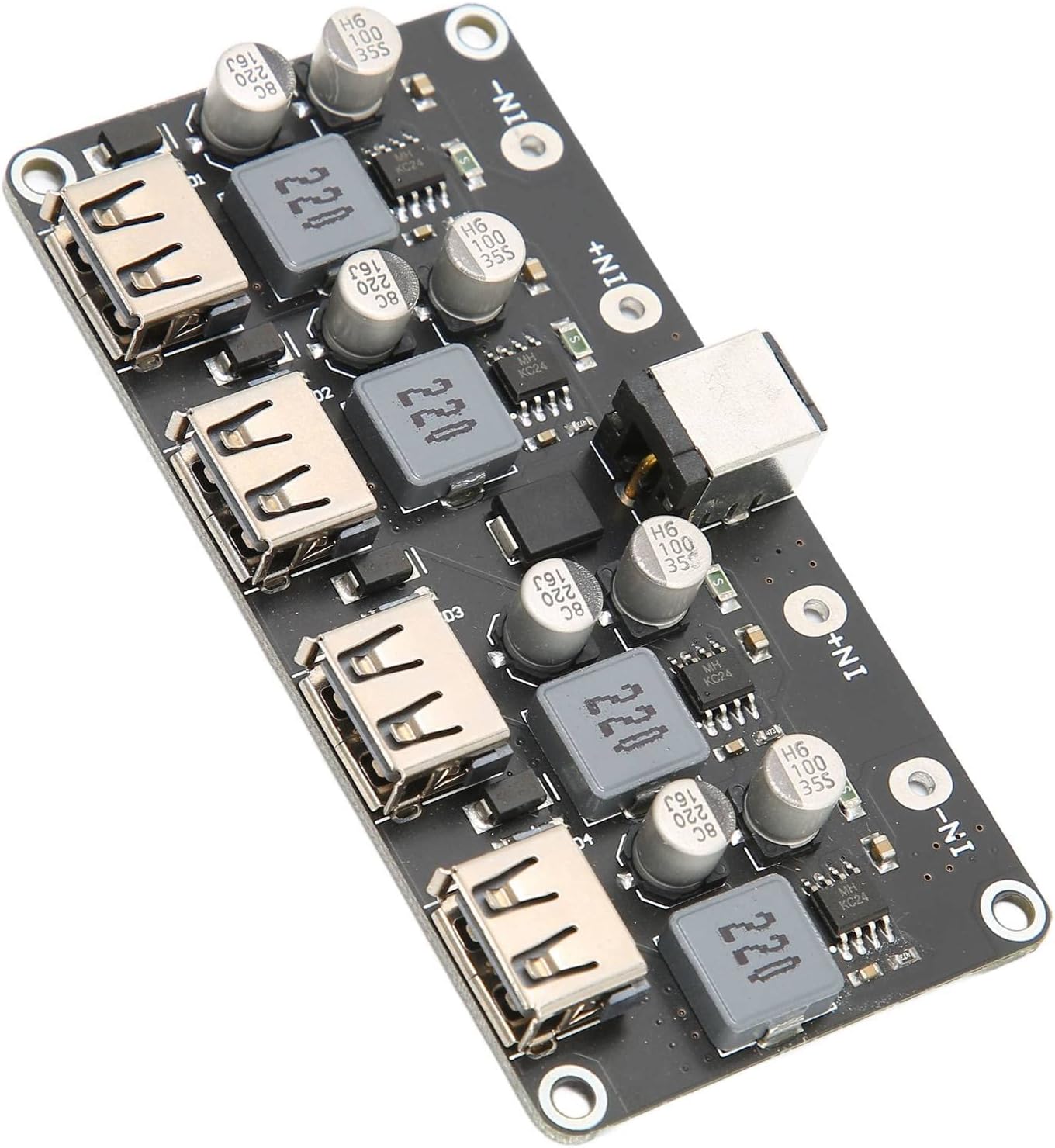

4 Way Fast Charge Module with USB Interface for QC3.0 Protocol, Excellent PCB Design, 24W Output Power Maximum

1. [MULTI-DEVICE FAST CHARGING] Charge up to 4 devices simultaneously with QC 3.0 fast charging support. 2. [OPTIMIZED PCB] Features FR‑4 1.6mm thick PCB with efficient heat dissipation for low operating temperature. 3. [STABLE OPERATION] Standby current of 0.013A, output voltage compensation, and multiple protections ensure safe charging. 4. [HIGHLY EFFICIENT CHIP] Built-in converter chip with 97% conversion efficiency and 220Khz switching frequency for rapid charging. 5. [VERSATILE CHARGING] USB interface design supports multiple fast charging protocols for wide device compatibility. Specification: Item Type: Fast Charging Module Built in synchronous switching converter chip Input Voltage Range: 4.5V-32V ( module, the input voltage must be higher than the output voltage) Output Voltage Range: 3V-12V, automatically adjusted according to the fast charging protocol Output Power: 24W maximum (4V at 3.6A, 5V at 3.4A, 9V at 2.5A, 12V at 2A, etc.) Output voltage wired compensation Output has CV/CC characteristics (output current is less than the set value, output CV mode; output current is greater than the set value, output CC mode) Conversion Efficiency: Up to 97% Soft Start Function: Yes Switching Frequency: 220Khz Output Fast Charge: 1. Support for BC1.2, for iOS, for protocol 2. Support for .0 QC3.0 3. Support for MTK PE1.1/PE2.0 4. Support for Fast charging Protocol FCP 5. Support for fast charging protocol AFC 6. Support for Fast charging Protocol SFCP Multiple Protection, High Reliability: 1. Output overcurrent, input overvoltage, input undervoltage, output short circuit protection 2. Over temperature protection of the whole machine 3. ESD 4KV, DC withstand voltage 48V How to Use: All 4 way USB support fast charging protocol and can output 5V 9V 12V. packing list: 1 x Fast Charging Module Note: This module is a 4 way type fast charging module, please use 12V‑30V DC power supply, the positive and negative poles cannot be reversed.

• [MULTI-DEVICE FAST CHARGING] Charge up to 4 devices simultaneously with QC 3.0 fast charging support.
• [OPTIMIZED PCB] Features FR‑4 1.6mm thick PCB with efficient heat dissipation for low operating temperature.
• [STABLE OPERATION] Standby current of 0.013A, output voltage compensation, and multiple protections ensure safe charging.
• [HIGHLY EFFICIENT CHIP] Built-in converter chip with 97% conversion efficiency and 220Khz switching frequency for rapid charging.
• [VERSATILE CHARGING] USB interface design supports multiple fast charging protocols for wide device compatibility.
